Gesture-based Presentation Remote

| Zhanming Chen | 7 min read | Course
Workplace Computer Vision
Class Favorite

This project is for a graduate-level course at the University of Minnesota, CSCI 5127W: Embodied Computing: Design and Prototyping. It is a gesture-based presentation remote building on Raspberry Pi. The prototype was voted as the Top 3 of the coolest ideas in class.

All set.

Demonstration Video

Introduction & Background

Just imagine how we interacted with technology before we had computers and smartphones. Around three decades ago, most of us just used our bare hands to interact with the handles or the other parts of machines when interacting with them. The gesture-based movements are direct, natural, and easy to understand. However, things completely changed after the engineers introduced input devices like keyboards and pointers, pushing us to a WIMP-based interaction (windows, icons, menus, and pointers) era.

Nowadays, the development of computer vision algorithms and sensors facilitates gesture-based interfaces. Gesture-based interaction is broadly studied in Human-computer Interaction (HCI). Gesture-based interfaces translate gestures into commands. These interfaces distinguish successive body movements of the user and translate body parts such as hands, fingers, face, and head into a discrete sequence of computer commands. Compared to WIMP-based interactions (windows, icons, menus, and pointers), mid-air gesture-based interaction is considered more intuitive, easier to learn, and easier to memorize.

Following the previous work on applying gesture-based interfaces in teaching and public speaking, this project is about building a gesture-based interface for switching slide pages on Raspberry Pi. It is motivated by my personal experiences. During Fall 2024, I worked as a graduate instructor at the U, and sometimes forgot to bring the remote controller for the slides with me. I have always looked forward to a system integrated into the lecture desk that could detect my gestures and help me switch the pages of my slides.

Material List

It would help if you considered preparing the following hardware materials and software to implement this project.

Hardware

  • Raspberry Pi 4 Model B [ Amazon ]
  • Raspberry Pi 15W USB-C Power [ Amazon ]
  • Raspberry Pi Camera Module V2-8 [ Amazon ]
  • Micro SD Card (32 GB) [ Amazon ]
  • Monitor (for testing) [ Amazon ]
  • Micro HDMI to (mini) HDMI cable [ Amazon ]
    • Note: Raspberry Pi 4 Model B has two micro HDMI portals. You could choose the cable types based on your monitor’s HDMI portal.
    • Alternative: You could purchase the HDMI to HDMI cable and HDMI to micro HDMI adapters.
  • Wired/Wireless Keyboard
  • (Optional) Wired/Wireless mouse
  • (Optional) A laptop
  • (Optional) Raspberry Pi 4 Model B Case [ Amazon ]
  • (Optional) Raspberry Pi Camera Module Stand [ Amazon ]

Figure 1. The Raspberry Pi 4 with a case.

Software

Hardware Configuration

Connect Raspberry Pi Camera Module

When power is not connected, plug the camera’s soft cable into the Raspberry Pi camera port, the connector between the USB and micro HDMI ports. The connector has a black plastic cover, which can be opened by gently lifting both sides of the cover upwards. The gold-colored connector of the cable should face the micro HDMI port, and the blue part of the cable should face the USB port on the Raspberry Pi. Lastly, close the black lid by gently pressing down on it. An optional stand is used to hold the camera in place, thereby improving the accuracy of the gesture recognition. In the handheld condition, the recognition algorithm sometimes interrupts due to the shaky image, and the accuracy of determining the left and right movement of the hand is not satisfactory.

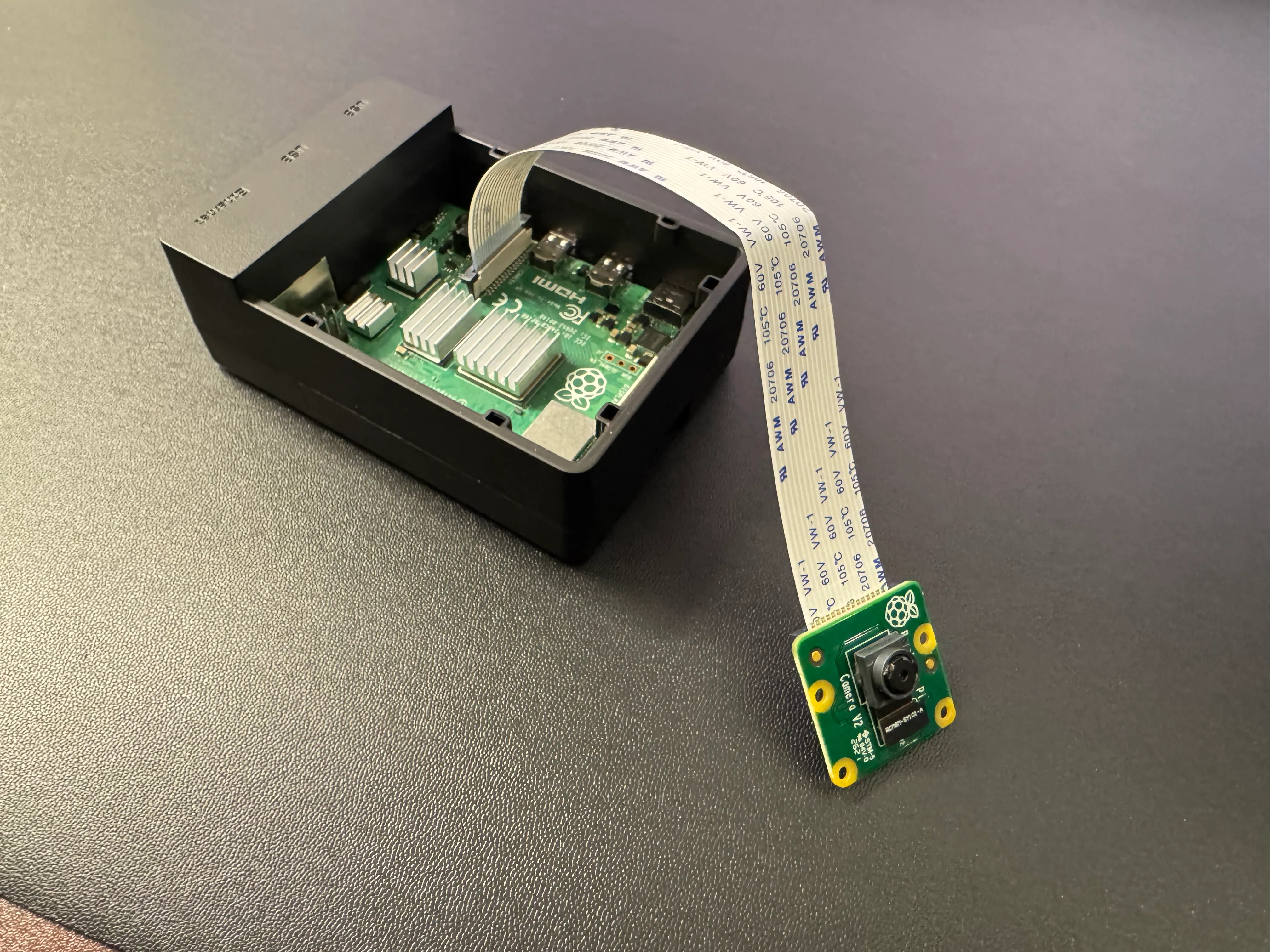

Figure 2. The Raspberry Pi 4 with the camera module installed.

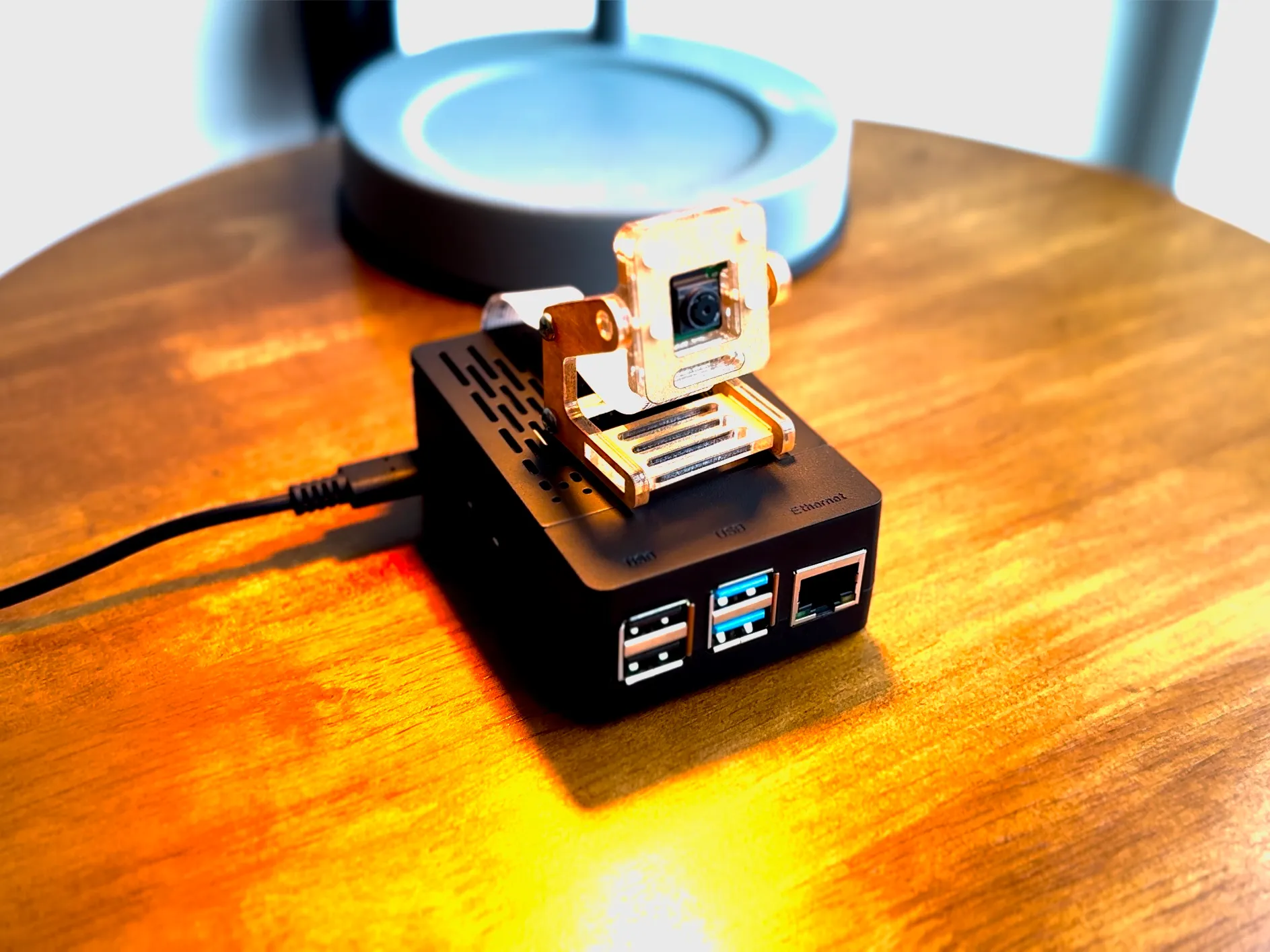

Figure 3. The completed installation.

Connect All the Cables

Connect the power to the Raspberry Pi, then connect the Raspberry Pi to the test screen using the HDMI cable and connect the power to the test screen.

Note: Before connecting the power wire to the Raspberry Pi, please first refer to 4.1, install Raspberry Pi OS, and plug in the Micro SD Card.

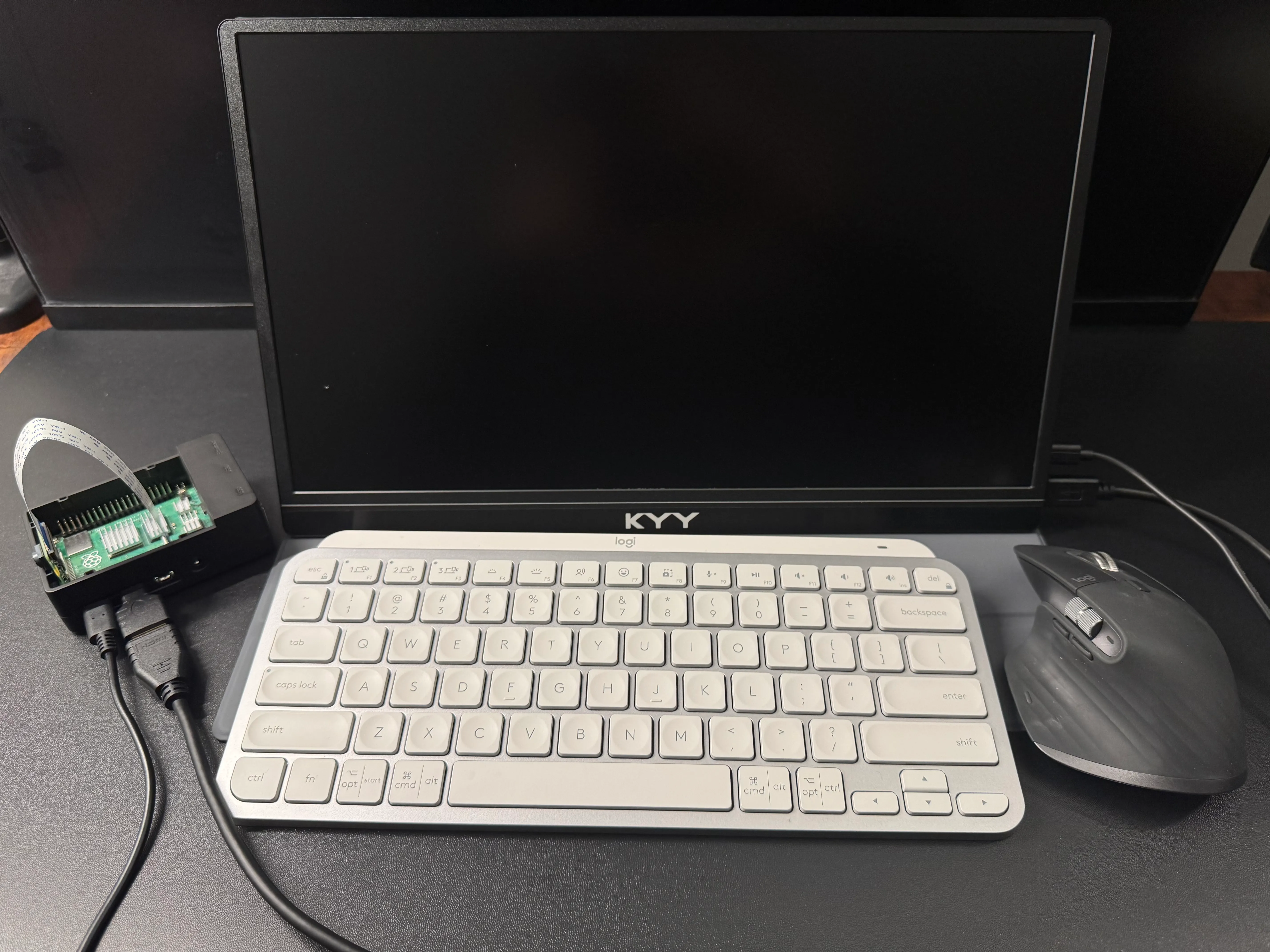

Figure 4. All parts of the hardware are connected.

Software Programming

Install Raspberry Pi OS

Follow the guide and install Raspberry Pi OS. Start by downloading Raspberry Pi Imager, then connect the microSD card to your laptop and run the Imager program. Select the device, operating system, and location of the SD card, respectively, and click Next. Once the installation is complete, insert the microSD card into the slot on the bottom of the Raspberry Pi.

Note: Before connect the power wire to the Raspberry Pi, please firstly install Raspberry Pi OS and plug in the Micro SD Card.

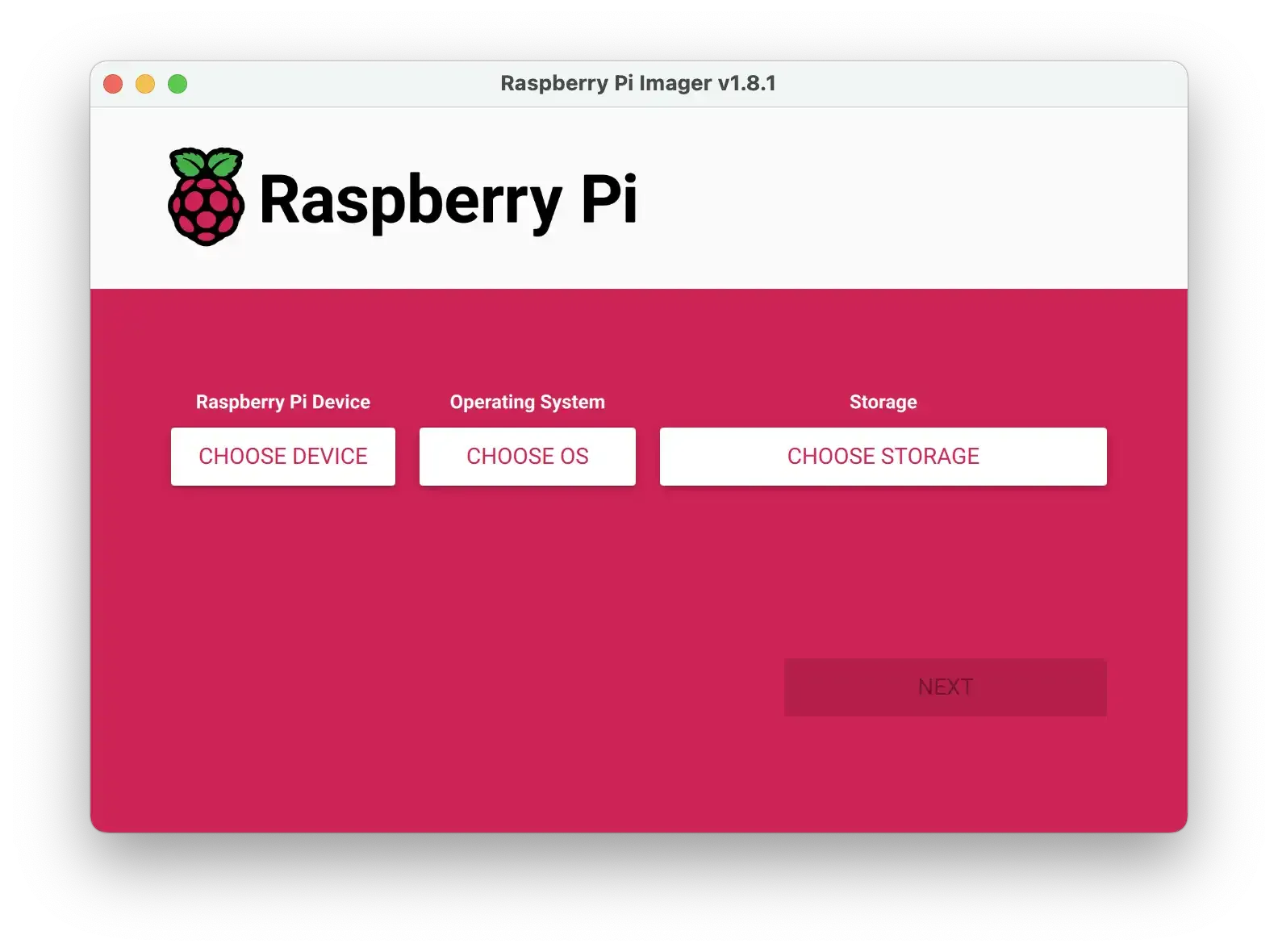

Figure 5. Raspberry Pi Imager.

After powering up the Raspberry Pi, first connect the keyboard and mouse. When using a wireless keyboard and mouse, set the devices to Bluetooth discoverable mode and the Raspberry Pi will automatically start connecting. Then, follow the steps on the screen to fill in the account number, password, and time zone, respectively, and set up the wireless network. Allow the Raspberry Pi to update the system and applications, or manually update them in the terminal using the codes below.

sudo apt-get update
sudo apt-get upgrade

4.2 Install Libreoffice for Raspberry Pi

Follow the guide and install Libreoffice for Raspberry Pi. Open the terminal and paste the codes below.

sudo apt-get install libreoffice

You can open the Libreoffice by clicking the menu button at the top-left corner, and several apps will be shown in the “Office” panel. In this project, you will use the “LibreOffice Impress” app. Click on and open it. It is simiar to Microsoft Powerpoint. Create 2-3 test slide pages by adding some random texts.

4.3 Recognizing Gestures Using Computer Vision Algorithms

For the gesture recognition part, four modules should be installed to Raspberry Pi: cv2, mediapipe, pyautogui, and picamera. Open the terminal and paste the codes below, one line at a time.

pip install cv2 --break-system-packages
pip install mediapipe --break-system-packages
pip install pyautogui --break-system-packages
pip install picamera --break-system-packages

Now, you can create a new file on the Desktop folder of Raspberry Pi with the format filename.py, and paste the codes below. The codes are generated using ChatGPT, checked by referring to tutorials, and validated by testing.

import cv2
import mediapipe as mp
import pyautogui
from picamera2 import Picamera2
import time

# Initialize Mediapipe hands and drawing utilities
mp_drawing = mp.solutions.drawing_utils
mp_hands = mp.solutions.hands

# Initialize Picamera2
picam2 = Picamera2()
config = picam2.create_preview_configuration(main={"size": (640, 480)})
picam2.configure(config)
picam2.start()

# Allow the camera to warm up
time.sleep(2)

# Function to detect finger positions
tipIds = [4, 8, 12, 16, 20]
state = None

def fingerPosition(image, handNo=0):
    lmList = []
    if results.multi_hand_landmarks:
        myHand = results.multi_hand_landmarks[handNo]
        for id, lm in enumerate(myHand.landmark):
            h, w, c = image.shape
            cx, cy = int(lm.x * w), int(lm.y * h)
            lmList.append([id, cx, cy])
    return lmList

# Initialize Mediapipe Hands model
with mp_hands.Hands(
        min_detection_confidence=0.8,
        min_tracking_confidence=0.5) as hands:

    while True:
        # Capture frame from the Picamera2
        frame = picam2.capture_array()

        # Flip the image horizontally for a later selfie-view display
        image = cv2.flip(frame, 1)

        # Convert the BGR image to RGB for Mediapipe processing
        image_rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
        results = hands.process(image_rgb)

        # If hand landmarks are detected
        if results.multi_hand_landmarks:
            for hand_landmarks in results.multi_hand_landmarks:
                mp_drawing.draw_landmarks(image, hand_landmarks, mp_hands.HAND_CONNECTIONS)

            lmList = fingerPosition(image)

            if len(lmList) != 0:
                fingers = []
                for id in range(1, 5):
                    if lmList[tipIds[id]][2] < lmList[tipIds[id] - 2][2]:
                        fingers.append(1)
                    else:
                        fingers.append(0)

                totalFingers = fingers.count(1)
                print(f"Fingers detected: {totalFingers}")

                if totalFingers == 1:
                    if lmList[8][1] < 300:
                        pyautogui.press('left')
                        print("PreSlide")
                    elif lmList[8][1] > 400:
                        pyautogui.press('Right')
                        print("NextSlide")

        # Display the image
        cv2.imshow("Gesture Detection", image)

        # Break if 'q' is pressed
        if cv2.waitKey(1) & 0xFF == ord('q'):
            break

# Cleanup
cv2.destroyAllWindows()
picam2.close()

You can test the codes by opening the terminal and paste the following codes.

cd Desktop/
python3 filename.py

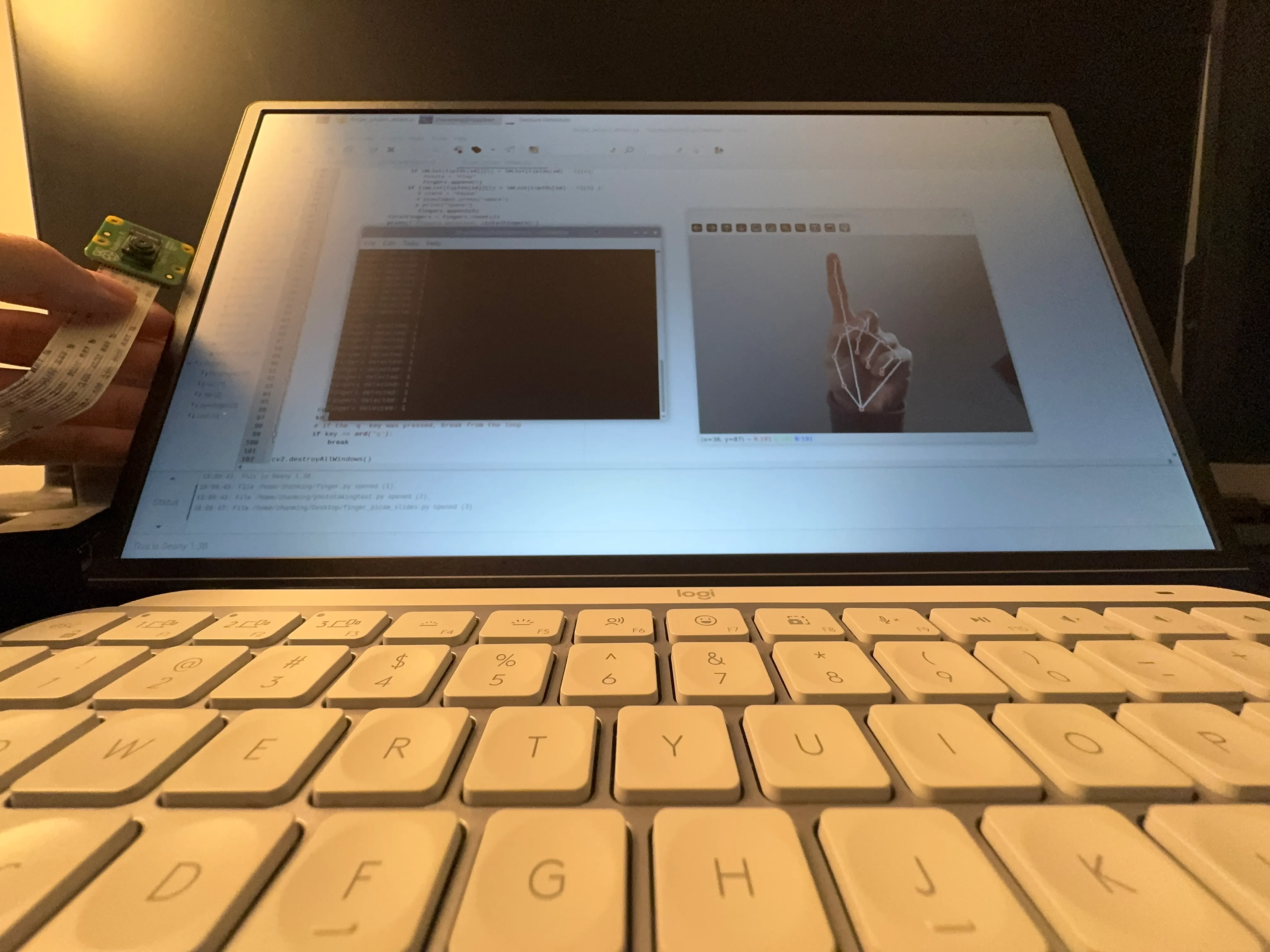

Figure 6-1. Testing the gesture recognition program.

5 Features Demonstration

Voilà! Now you are all set. Keep the python file running and open the test slides. Enter the presentation mode and make sure the slides window is focused. With you index finger pointing up, you can switch to the next page by moving your hand to the right or switch to the previous page by moving your hand to the left.

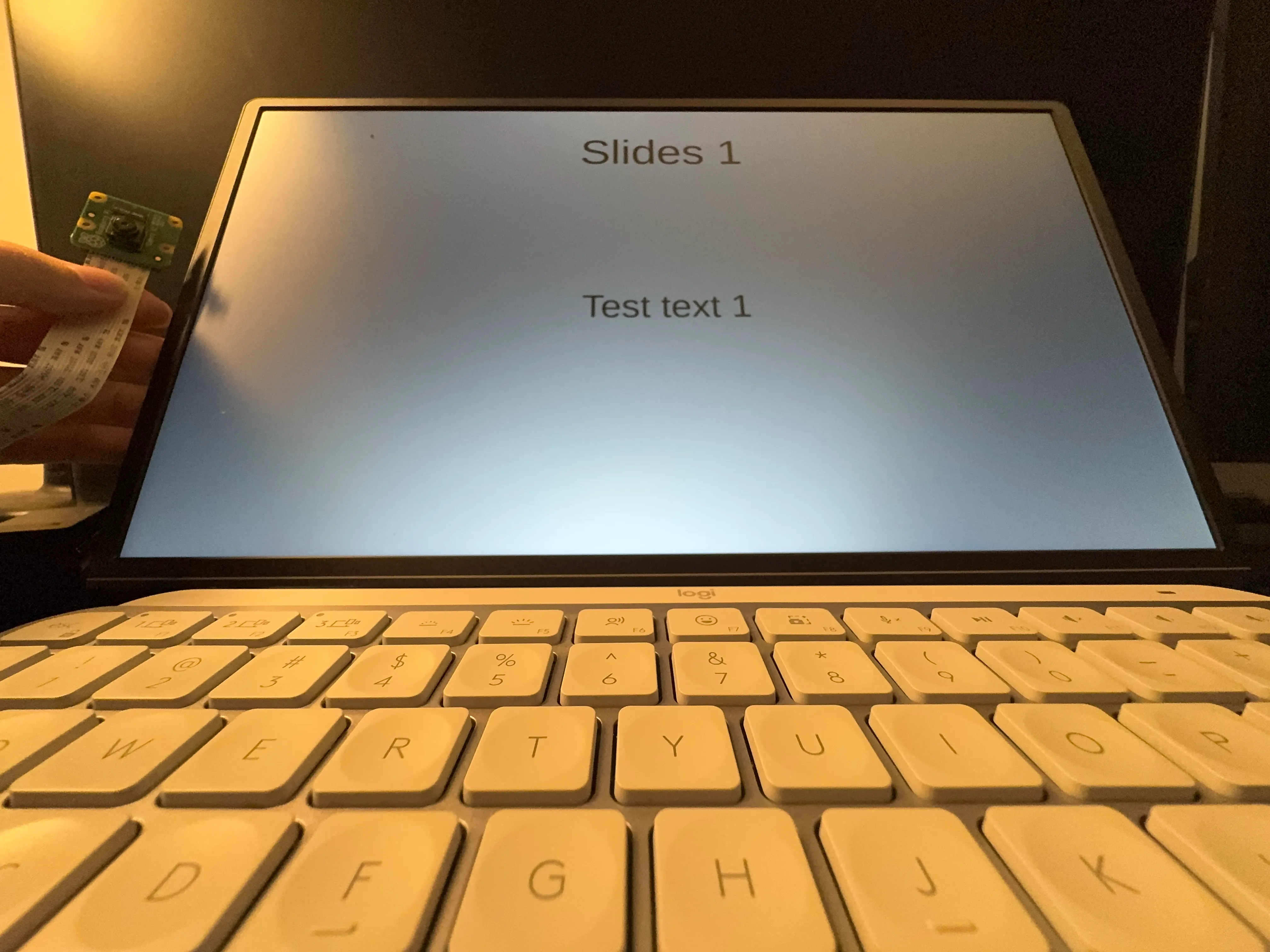

Figure 7. Switching slide pages by hand gestures.

Moving forward, I plan to add more gesture commands such as exit presentation and return to home page.
